ITPHOTONICS ARE COMMITTED TO SOLVING SPECIFIC MEASUREMENT PROBLEMS THROUGH TAILORED SPECTROSCOPIC SOLUTIONS
ITPhotonics, an Italian company, specializes in applied spectrophotometry, creating analytical instruments for rapid, non-destructive moisture and component measurements. Their Polispec range of compact, innovative spectrophotometers are designed for diverse applications, including portable use, lab analysis, and industrial integration for real-time measurements.
Polispec units perform both quantitative and qualitative analyses, serving various industries for applications such as raw material control, animal nutrition, moisture content, crop quality, and mixed product component concentrations. ITPhotonics offers complete "turnkey" systems and provides customized calibration curves to meet specific customer requirements.
Polispec
Polispec LITE
Polispec LITE easily adapts to both portable/laboratory and inline measurements. It is particularly suitable for the analysis of macro-elements, even in products that are not homogenous.
Polispec LITE
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | Various ranges between 580nm - 1080nm |
| Operating mode | Reflectance / transmittance |
| Usage | Portable, Inline |
| Calibration | Software allows development of chemometric models. Optionally, model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | WiFi and RS422/RS485 Optional: WiFi and Ethernet |
| Protection | IP68 Option: IP69K |
| User Interface | Two button control for baseline and measure |
| Software | Polidata - Portable units Poliprocess - Inline units |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Extended scanning windows Flange connection/other connection adaptors Internal data processing unit |
| Accessories | Table stand with rotating sample cell, convex sample adapter, cuvette adapter, liquid sample cup, test tube adapter |
Polispec NIR
Polispec NIR can be used in both portable/laboratory and inline measurements. Polispec NIR is suitable for analyzing a wide range of matrices, from the most reflective to the most absorbent.
Polispec NIR
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | 900-1700 nm |
| Operating mode | Reflectance / transmittance |
| Usage | Portable, Inline |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | WiFi and RS422/RS485 Optional: WiFi and Ethernet |
| Protection | IP68 Option: IP69K |
| User Interface | Two button control for baseline and measure |
| Software | Polidata - Portable units Poliprocess - Inline units |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Extended scanning windows Flange connection/other connection adaptors Internal data processing unit Internal backup lamp |
| Accessories | Table stand with rotating sample cell, convex sample adapter, cuvette adapter, liquid sample cup, test tube adapter |
Polispec NIRe
Polispec NIRe is an extended version of the Polispec NIR and covers a spectrum up to 2180nm. This exceptional range makes it suitable for measurements across an even more diverse set of products and substances.
Polispec NIRe
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | 900-1700 nm |
| Operating mode | Reflectance / transmittance |
| Usage | Portable, Inline |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | WiFi and RS422/RS485 Optional: WiFi and Ethernett |
| Protection | IP68 Option: IP69K |
| User Interface | Two button control for baseline and measure |
| Software | Polidata - Portable units Poliprocess - Inline units |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Extended scanning windows Flange connection/other connection adaptors Internal data processing unit Internal backup lamp |
| Accessories | Table stand with rotating sample cell, convex sample adapter, cuvette adapter, liquid sample cup, test tube adapter |
Polispec VIS-NIT
Polispec VIS-NIT is a measurement only spectrophotometer ideal for laboratory use. It is fiber optically coupled and available with two different wavelength options. The PoliADK software package is available for programmers to develop their own applications with the Polispec as an integral measurement.
Polispec VIS-NIT
| Light Source | External source |
| Spectral Range | 340-750nm or 580-1080nm |
| Operating mode | Transmittance / Absorbance |
| Optical Connection | Collimated SMA905 |
| Usage | Laboratory, at line |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Protection | IP68 Option: IP69K |
| Software | Polidata - Portable/laboratory units PoliADK - for software developers |
| Power Supply | 12Vdc |
Polispec Industry
Polispec Industry LITE
Polispec Industry LITE is a VIS-NIR spectrophotometer designed for the inline measurement of macro-elements in liquids and solids streams.
Polispec Industry LITE
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | Various ranges between 580nm - 1080nm |
| Operating mode | Reflectance / transmittance |
| Usage | Inline |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | RS422 Optional: RS485, Ethernet |
| Protection | IP68 Option: IP69K |
| Software | Poliprocess |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Flange connection/other connection adaptors Internal data processing unit |

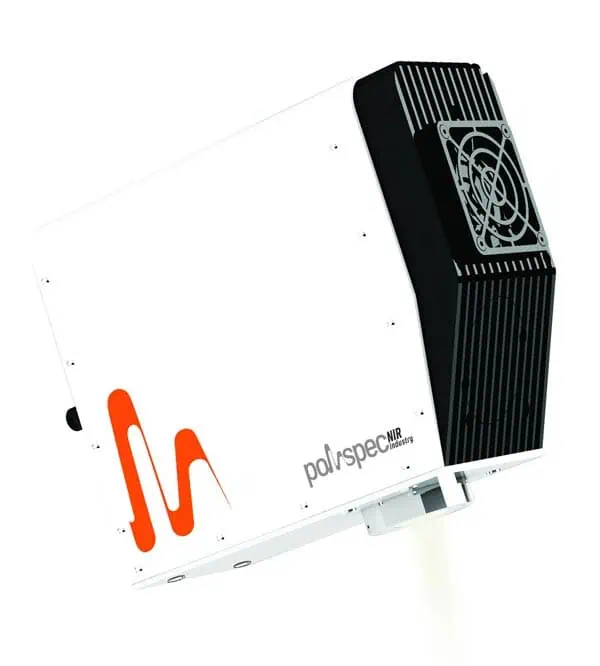

Polispec Industry NIR
Polispec Industry NIR is installed inline to provide real time analysis of a wide range of matrices, from the most reflective to the most absorbent.
Polispec Industry NIR
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | 900-1700 nm |
| Operating mode | Reflectance / transmittance |
| Usage | Inline |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | RS422 Optional: RS485, Ethernet |
| Protection | IP68 Option: IP69K |
| Software | Poliprocess |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Flange connection/other connection adaptors Internal data processing unit Internal backup lamp |
Polispec Industry NIRe
Polispec Industry NIRe is an extended version of the Polispec Industry NIR and covers a spectrum up to 2180nm. This exceptional range makes it suitable for real time measurements across an even more diverse set of products and substances.
Polispec Industry NIRe
| Light Source | Built in Halogen lamp / external source |
| Spectral Range | 900-1700 nm |
| Operating mode | Reflectance / transmittance |
| Usage | Inline |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | RS422 Optional: RS485, Ethernet |
| Protection | IP68 Option: IP69K |
| Software | Poliprocess |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Flange connection/other connection adaptors Internal data processing unit Internal backup lamp |
Polispec Industry VIS-NIT
Polispec Industry VIS-NIT is a measurement only spectrophotometer for installation in production environments. Fiber optically coupled, it is available with two different wavelength options. PoliADK software package is available for programmers to develop their own applications with the Polispec as an integral measurement.
Polispec Industry VIS-NIT
| Light Source | External source |
| Spectral Range | 340-750nm or 580-1080nm |
| Operating mode | Transmittance / Absorbance |
| Optical Connection | Collimated SMA905 |
| Usage | At line |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Protection | IP68 Option: IP69K |
| Software | Poliprocess, PoliADK |
| Power Supply | 12Vdc |
Polispec Contactless
Polispec Contactless LITE
Polispec Contactless LITE is installed above conveyors and open channels to analyze materials as they pass underneath. It is particularly suitable for the analysis of macro-elements, even in inhomogeneous products.
Polispec Contactless LITE
| Light Source | Separately housed Halogen lamp |
| Spectral Range | Various ranges between 580nm - 1080nm |
| Operating mode | Reflectance |
| Usage | Above conveyor/product, 20cm to 60cm distance |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | RS422 Optional: RS485, Ethernet |
| Protection | IP68/IP55 Option: IP69K/IP55 |
| Software | Poliprocess |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Internal data processing unit |

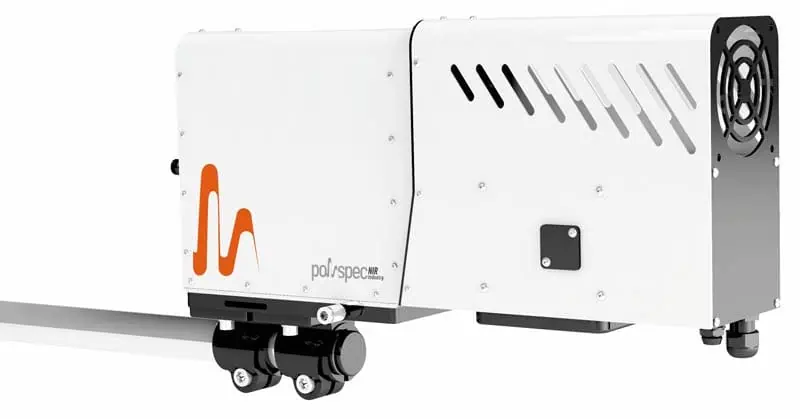

Polispec Contactless NIR
Polispec Contactless NIR is a longer wavelength version of the Polispec Contactless NIR for installation above conveyors and channels. Polispec Contactless NIR is suitable for analyzing a wide range of matrices.
Polispec Contactless NIR
| Light Source | Separately housed Halogen lamp |
| Spectral Range | 900-1700 nm |
| Operating mode | Reflectance / transmittance |
| Usage | Above conveyor/product, 20cm to 60cm distance |
| Calibration | Software allows development of chemometric models. Option: model developed by ITPhotonics |
| Digital Communications | Modbus, Modbus/TCP. Option: CAN-BUS |
| Communications Interfaces | RS422 Optional: RS485, Ethernet |
| Protection | IP68/IP55 Option: IP69K/IP55 |
| Software | Poliprocess |
| Power Supply | 12Vdc (power supply supplied) Interchangeable rechargeable battery |
| Options | Internal data processing unit |
Polispec Software
Polidata
Polidata
Polidata is a fully automated software package for stand-alone and laboratory data acquisition and chemometric predictions for measurements and scans made with portable Polispec instruments. Scan data is immediately analyzed in chemometric models, providing instant results. It is available in various languages with interfaces for both tablet and desktop computers, and has two prediction engines: SensoLogic and UCal. Basic functions are:
Polidata is a fully automated software package for stand-alone and laboratory data acquisition and chemometric predictions for measurements and scans made with portable Polispec instruments. Scan data is immediately analyzed in chemometric models, providing instant results. It is available in various languages with interfaces for both tablet and desktop computers, and has two prediction engines: SensoLogic and UCal. Basic functions are:
- Quantitative chemometric analysis: using a chemometric model, a product can be analyzed with different sampling methods (single swipe, multiple swipe, multipoint). Analysis results are instantly available, can be exported in various formats (DAT, CSV/XML, compatible with different formulation software), and can be saved in an archive
- Analysis archive: data saved to the archive can be reviewed, compared to analyses on the same product type, and be used for printed reports
- Spectra acquisition: acquired spectra can be saved to create a dataset, with export formats such as SP3 (proprietary binary software) or CSV
- Instrument diagnostics:
Check cell: procedure to check proper spectral calibration on the instrument
Hardware check: confirms correct function of the main components of the instrument (buttons, fans, internal electronics)
Poliprocess
Poliprocess
Poliprocess is designed to be used with instruments permanently installed in industrial processes and machinery to provide continuous, real time product analysis and chemometric prediction. The software is modular and can be configured from standard modules and expanded with custom modules to adapt to specific needs. The standard modules are:
- GPS module: acquires NMEA position data from GPS antennas via serial connection to geo-reference analyses
- Datalogger module: saves analyses in CSV or KML (Keyhole Markup Language) formatted files
- ISObus module: manages analyses via a Virtual Terminal (VT) application; the acquired data are saved from the device task controller and can be exported in ISOXML file for use in most analysis platforms. The VT interface can be used to control the process completely: selecting the product (chemometric model), displaying instantaneous and average analysis of the process, and receiving notifications and alarms
- PLC module: reports measurement data to a PLC using different protocols: Modbus over TCP/IP, S7 and ISO over TCP/IP, or S7 (Siemens S7). Analysis values and system status are reported via a register set configured during installation
SP3 Manager
SP3 Manager
SP3 software is used to import spectra saved in SP3 (or CSV) format for further processing. The license free version allows users to open SP3 files and convert them into CSV format for spreadsheet manipulation.
Licenses are available to expand the package with additional functionality:
- Rename samples
- Create averages: creates averages of samples with the same name
- Export data: CSV, CSV for Matlab/Octave, DAT, CPF
- Analysis: using a chemometric model, selected spectra can be predicted and the results exported in CSV format or copied/pasted directly into a spreadsheet. Presentation can be configured to include statistical parameters of the analyses of each constituent
- Dataset: provides the ability to open an SP3 file and add additional analyses (by copying from a spreadsheet or importing in CSV format). The file created can be exported in DAT or CPF (SensoLogic) format
CMM/CME
CMM/CME
CMM software allows users to prepare chemometric models that can be used by Poliprocess. CMM includes an exclusive “global standardization” feature, a special algorithm developed to replicate/deploy the same calibration model on multiple instruments without having to adapt the instrument or the calibration curve itself.
CME (Chemometric Model Extension) software works with CMM software to enrich CP6 models with a number of functional extensions, including:
- Addition of a multilingual vocabulary for translating chemometric models and associated parameters
- Ability to add formulas to analysis reports
- Ability to thematically group results in reports
- Addition of information related to the chemometric model (units of measurement, range of values in calibration...)
PoliSDK
PoliSDK
poliADK is a Windows ADK for software developers. ADK provides the tools to independently manage Polispec settings, including calculation of optimal integration time. Reference acquisition procedure is also automated and used to apply pre-treatments such as smoothing or interpolation of spectra. The program allows extraction of raw and post processed spectral information.
ITPhotonics software is compatible with the SensoLogic and UCal Chemometric calibration suites.
