pH/ORP Transmitters

Our industrial pH transmitters—both digital and analog—deliver the features you want with the accuracy and durability you need.

DISCUSS SOLUTIONS WITH OUR EXPERTS

OUR pH AND ORP TRANSMITTERS ARE DESIGNED TO PROVIDE THE VERY BEST PERFORMANCE

We supply two dependable industrial pH transmitters designed to meet the demands of a wide range of process environments. Whether you're building a modern, data-driven system or maintaining a trusted legacy setup, we offer both digital and analog solutions that ensure accuracy, reliability, and long-term performance in pH measurement. Both options are built for durability and precision in demanding industrial conditions.

The OCM44, our digital pH transmitter, is built for today's connected operations and features full support for Memosens™ technology, allowing easy sensor replacement, safer calibration outside the process, and seamless integration with a wide variety of manufacturers’ sensors. With advanced diagnostics, robust digital signal transmission, and true “plug and play” multiparameter sensor connectivity, the OCM44 is the smart choice for facilities prioritizing efficiency, data integrity, and long-term asset management.

For more traditional applications, our OPM2x3 analog pH transmitter remains a practical and trusted option. Available in either field or panel mount packaging, it can be used for standalone control and/or deliver a continuous, stable 4–20 mA signal for integration with standard PLCs and DCS systems. An extended firmware option with additional functionality is available with extended diagnostics, enhanced neutralization control, and automatic probe cleaning triggered by alarms and limits. Built for simplicity, durability, and compatibility, it is ideal for operations that value time-tested technology and straightforward maintenance.

Need help selecting the pH System/Sensor for your application?

Use our handy 5-question selector to narrow down you best options.

pH SYSTEM SELECTOR

pH System Selector

"*" indicates required fields

Step 0 of 5
Begin
Step 1 of 5
My application is difficult eg. because of aggressive chemical composition, tendency to foul.
Step 2 of 5
Glass components are acceptable in my process.
Step 3 of 5
To me, lower upfront cost is more important than lower maintenance and longer life in service.
Step 4 of 5
I prefer digital vs. analog connection between pH sensors and their associated transmitters.
Last Step!
Will this be new or replacement?*
This field is for validation purposes and should be left unchanged.
  • OCM44 (Digital)

  • OPM2x3 (Analog)

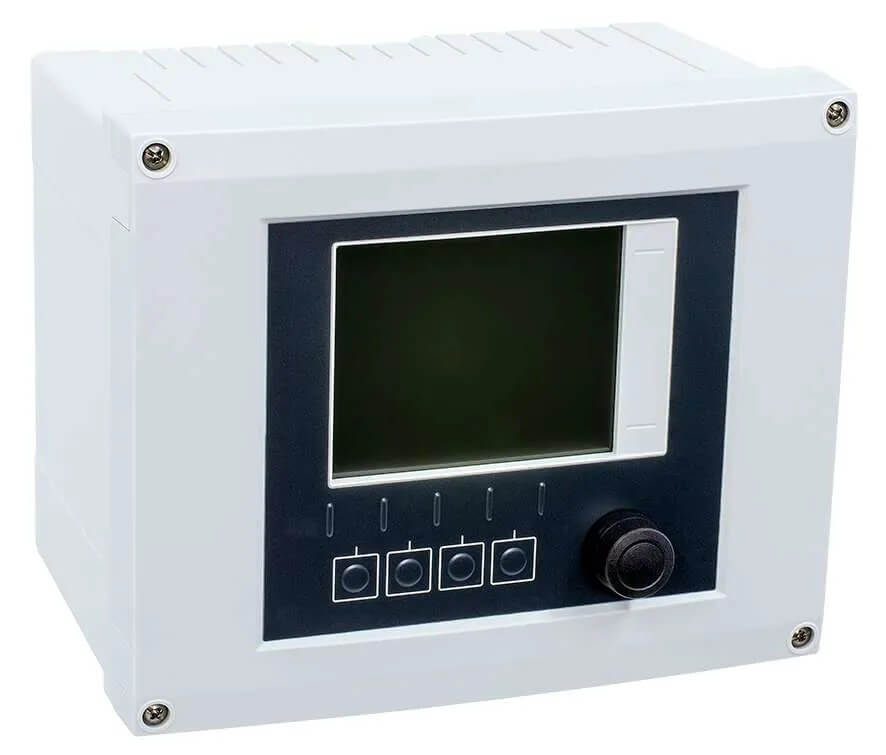

OCM44 (Digital)

OCM44 (Digital)
memosens logo

*Optional panel mount display and control interface available for DIN rail mounted unit

Datasheet Download

OCM44 (Digital)

Sensor Inputs 2 as standard, expandable up to 8
Sensor Types pH / ORP, Dissolved Oxygen,
Conductivity, Disinfection (Free Chlorine, ClO2, Free Bromine)
Analog Output 2 as standard, expandable up to 8
Digital Output (OC) 2 as standard, expandable up to 4
Relay Output Optional up to 4
Analog Input Optional up to 2
Digital Communication Options HART, Modbus RTU, Modbus TCP
Enclosure Options Field mount with multiline display and 4-button/jog shuttle operator control DIN rail mount*
Available Power Supplies 100 to 230 V AC, 50/60 Hz ±15%
24 V DC +20/-15%
Cable Entries (field mount) ⅜” and ½” NPT
Temperature Range Field Mount: -20 to 55°C / 0 to 130°F
DIN Rail Mount: 0 to 55°C / 32 to 130°F

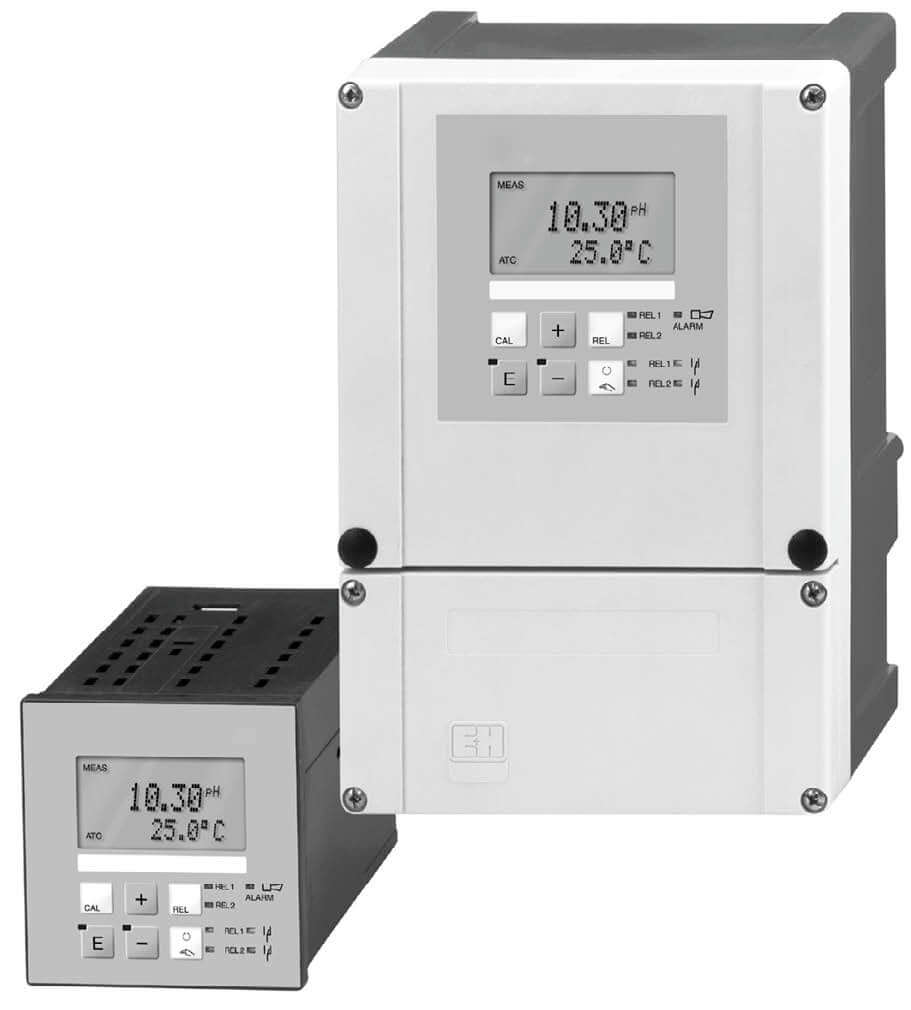

OPM2x3 (Analog)

OPM2x3 (Analog)
Datasheet Download

OPM2x3 (Analog)

Sensor Inputs Single analog glass pH/platinum ring ORP sensor
Measured Values pH, ORP, Temperature
Analog Output 1 as standard, expandable up to 2. Active, Namur compliant
Status Output C-form relay, 2A max
Relay Output Optional up to 4 max
User Interface LCD display with 6 operator buttons
Enclosure Options Field mount (OPM253)
Panel mount (OPM223)
Ingress Protection Field mount: IP 65 / NEMA 4X
Panel mount: IP 54 (front), IP 30 (housing)
Enclosure Material Field mount: ABS / Polyester
Panel mount: Polycarbonate / Polyester
Available Power Supplies 100/115/230 V AC +10/-15%, 48 to 62 Hz
24 V AC/DC +20/-15%
Temperature Rating -10 to 55°C / 14 to 131°F
Enclosure Size Field mount: 9.72 x 6.69 x 4.53”
Panel mount: 1/4 DIN (~4 x 4”)
