RHEONIK OFFERS MASS FLOW METERS IN A RANGE OF SIZES, AND ADDITIONAL FLOW TRANSMITTER ACCESSORIES.

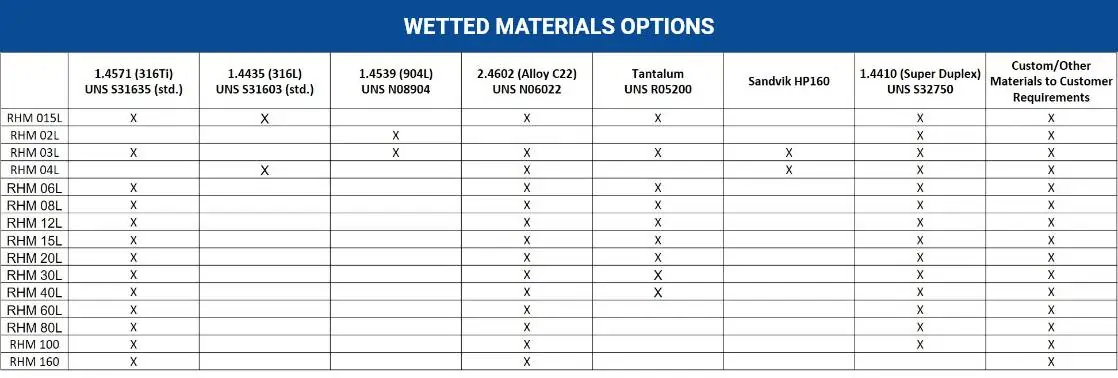

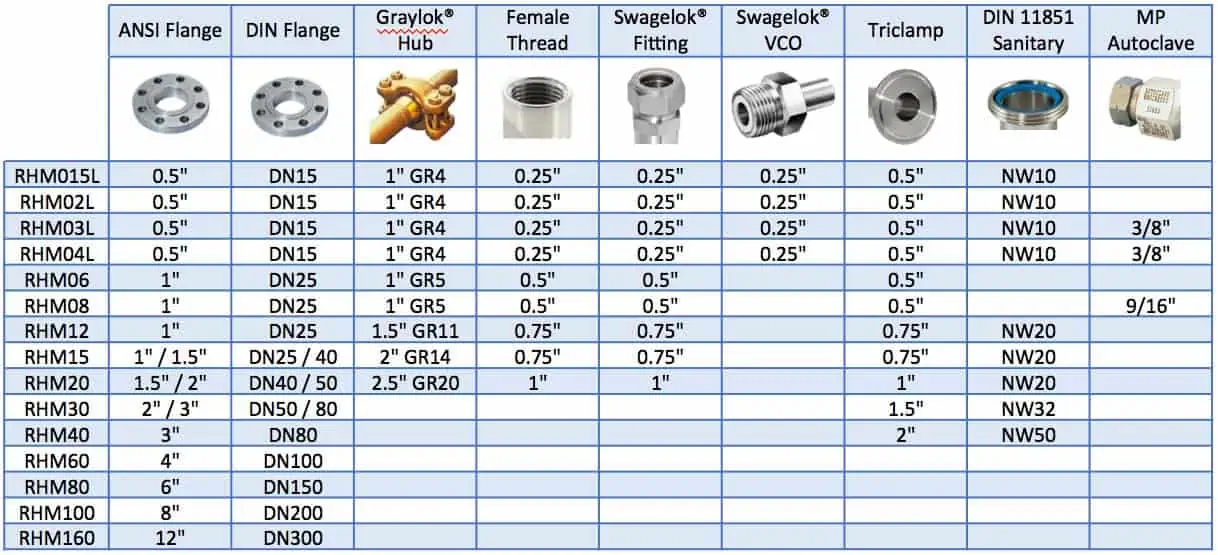

With sizes available to fit line sizes from ¼” to 12”, Rheonik always has a meter to meet your requirements. A wide range of process connections are available to suit most applications. Where a special fitting or weld-in-place is required, Rheonik can provide engineering services and custom design the right inlet/outlet arrangement for your needs. A range of wetted materials is offered as standard, each with its own set of pressure ratings depending upon line size. Custom materials are always possible through our engineering group.
Rheonik process mass flow transmitters have clear, easy-to-read local displays and intuitive, menu-driven setup and configuration functions. All include diagnostics for fault finding and performance tuning. Features include low-flow cutoff, response time, multiple I/O, selectable units and output range scaling capabilities. All settings are stored in non-volatile memory, and I/O is galvanically or optically isolated.
A Rheonik measurement solution consists of an RHM flow meter and an RHE transmitter. See the product options below and let us help create the optimum system for your flow measurement needs.
We Can Help You Navigate and Select the Best Flow Meter Products for Your Needs from the Following:
Have More Questions?
Take a quick moment to get in touch with our expert sales engineers and technologists and we'll guide you to a solution.

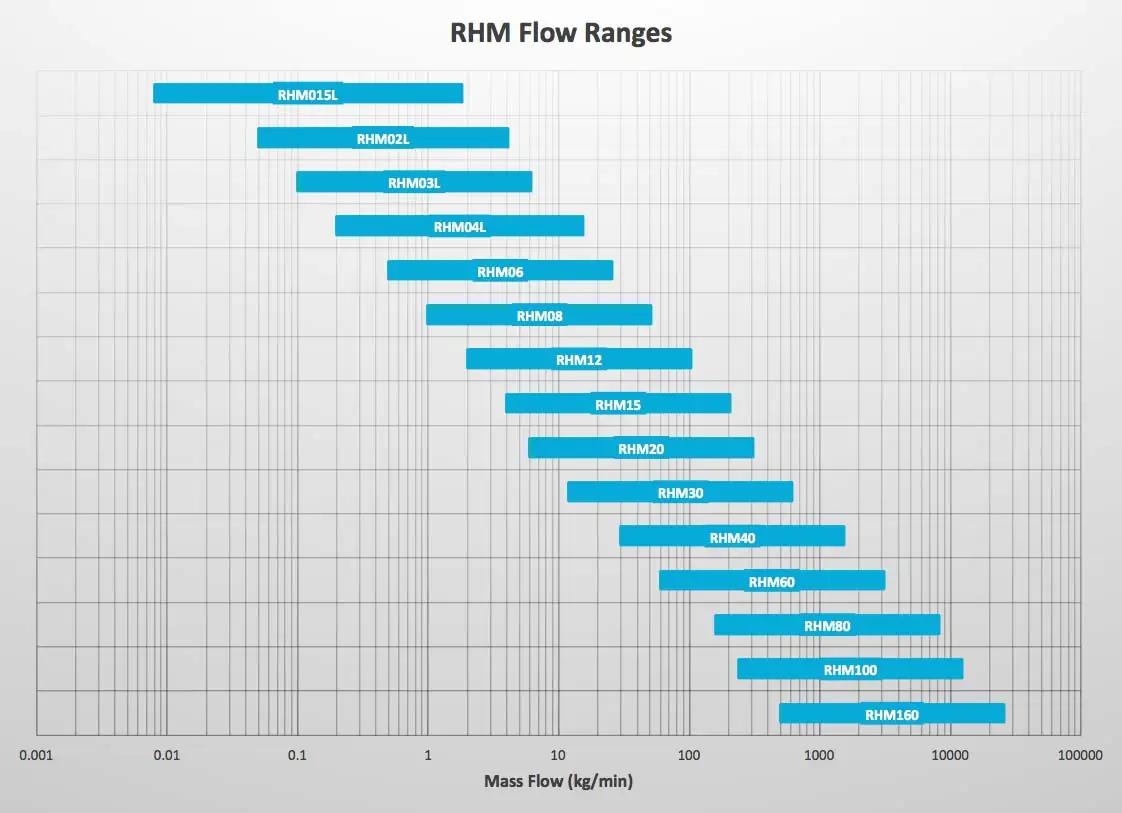

Rheonik Flow Meter Specifications & Options
Rheonik Mass Flow Meters
RHM 015L
Small Scale Meters
RHM 015L
The RHM015L is perfect for small scale production with continuous low flow and small batch dispensing requirements. With a variety of construction styles, the RHM015L is ideal for countless flow applications.
| Typical Application Range | 0.004 - 0.8 kg/min | |||
| Max Pressure | 1,220 bar / 17695 psi | |||
| Temperature | -196 - +350°C | |||
| Accuracy | 0.1% of rate | |||
| Materials |
|
|||
| Process Connections Size | 1/16" - 1" |

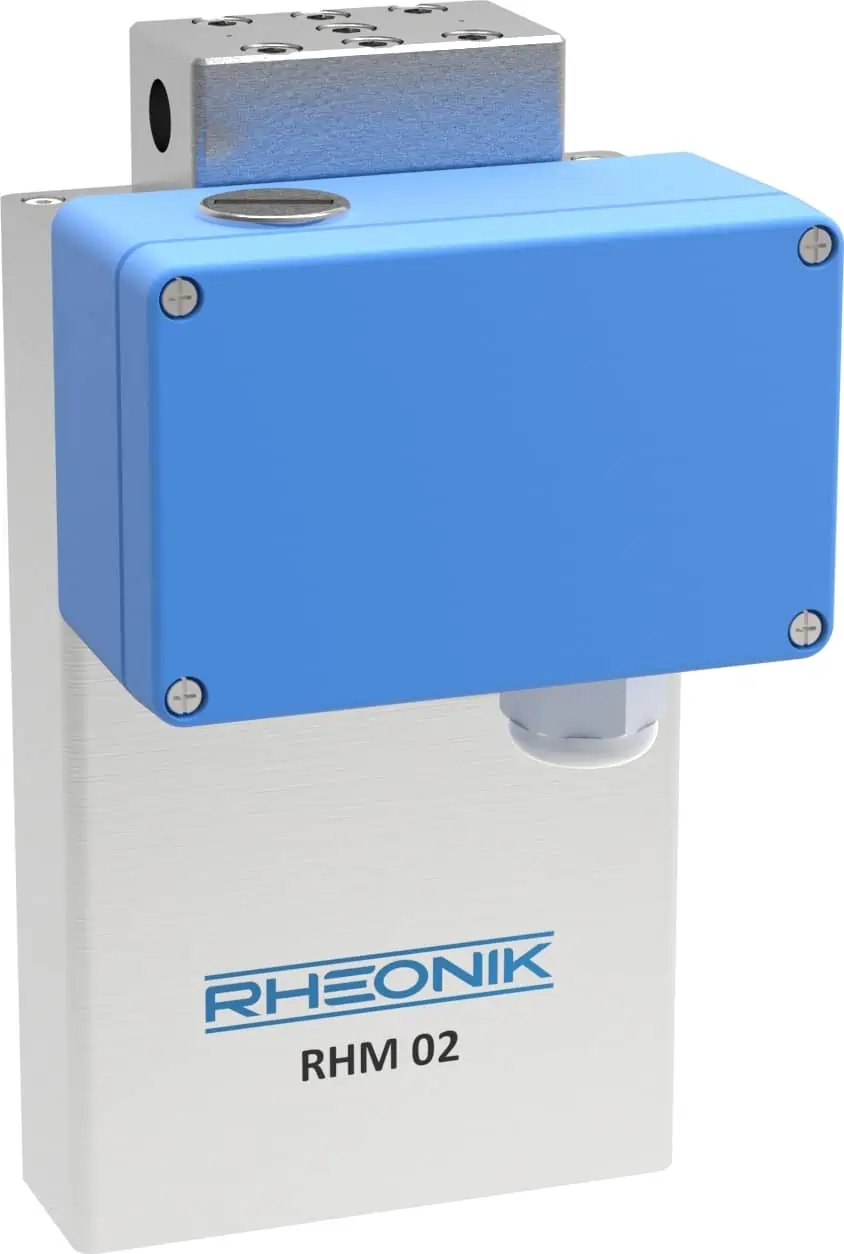

RHM 02L
Small Scale Meters
RHM 02L
The RHM02 is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low flow applications where high accuracy is a must.
| Typical Application Range | 0.02 - 2 kg/min | |||||
| Max Pressure | 1,220 bar / 17,695 psi | |||||
| Temperature | -196 - +350°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1/16" - 1" |

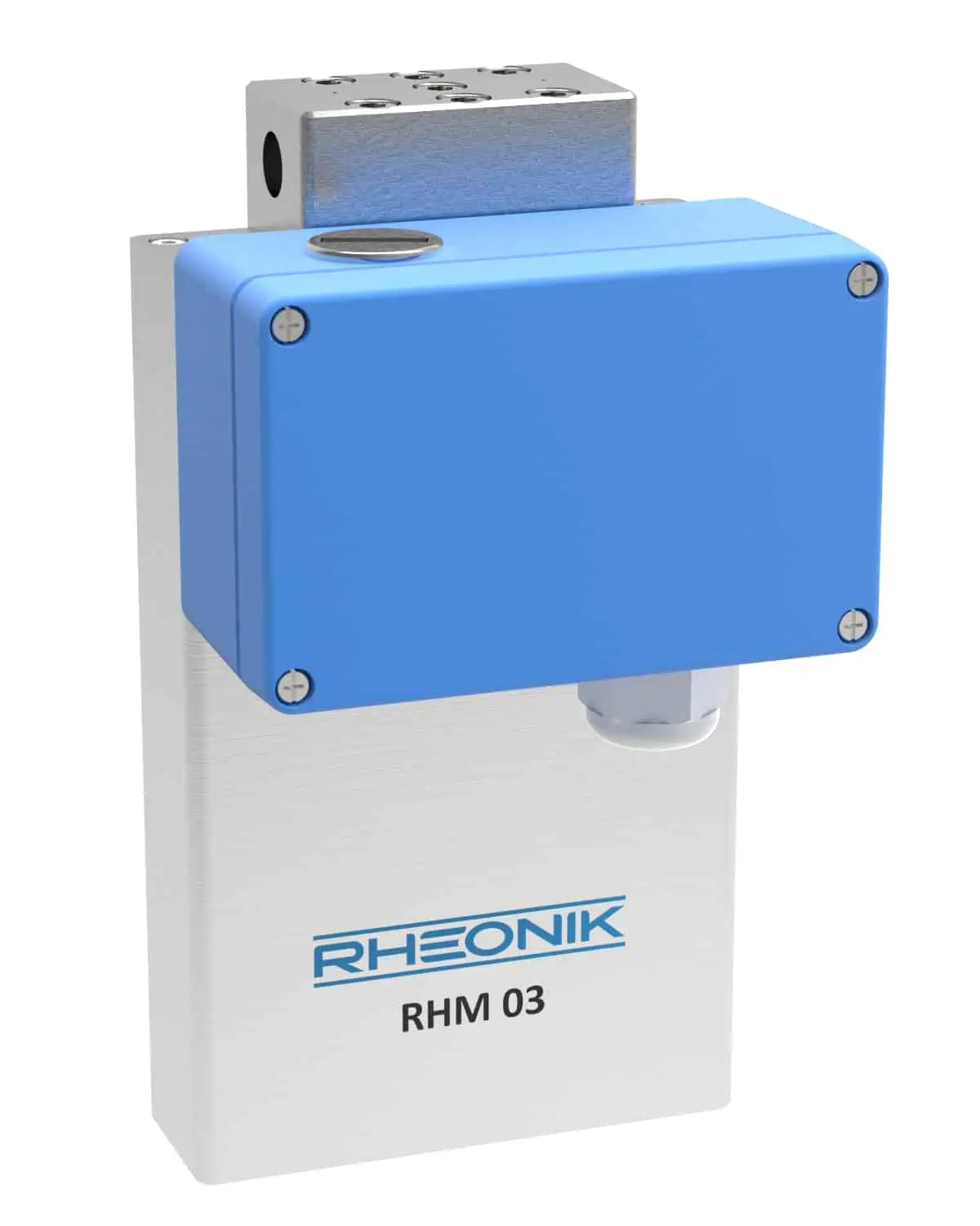

RHM 03L
Small Scale Meters
RHM 03L
The RHM03 is available with a wide selection of wetted materials and the highest pressure and temperature ratings in the market. It is suitable for all low flow applications where high accuracy is a must.
| Typical Application Range | 0.038 - 0.6 kg/min | |||||
| Max Pressure | 1,224 bar / 17,752 psi | |||||
| Temperature | -196 - +350°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1/8" - 1" |
RHM 04L
Small Scale Meters
RHM 04L
The RHM04 is a fast response solution for batching, dispensing and filling applications. Very high pressure ratings allow deployment in processes where Coriolis meter use has not been possible in the past.
| Typical Application Range | 0.05 - 10 kg/min | |||||
| Max Pressure | 900 bar / 13,053 psi | |||||
| Temperature | -196 - +350°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1/4" - 1" |

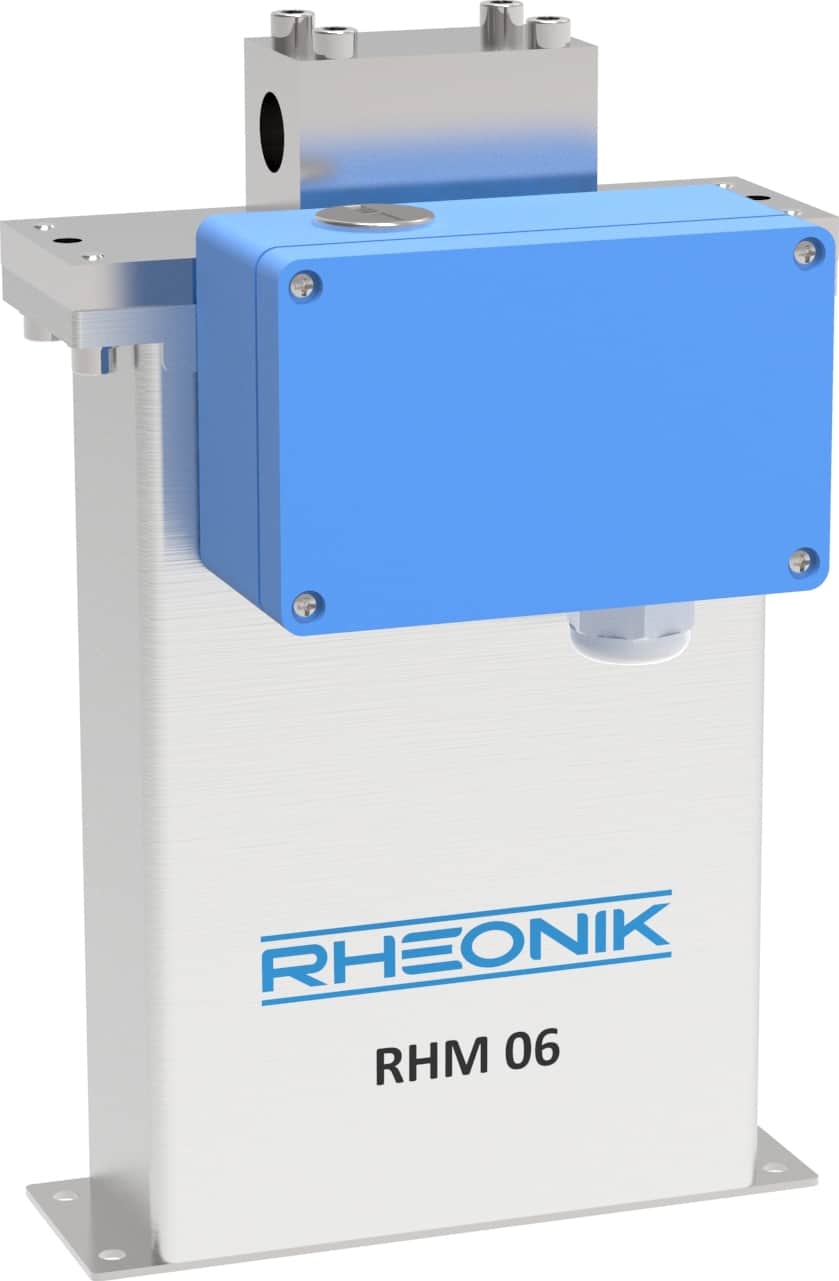

RHM 06
Small Scale Meters
RHM 06
The RHM06 is a low risk, low maintenance solution for critical flow applications everywhere. High pressure and temperature options combined with a selection of wetted materials make the RHM06 a true “fit and forget” device.
| Typical Application Range | 0.15 - 20 kg/min | |||||
| Max Pressure | 1,043 bar / 15,127 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1/2" - 2" |

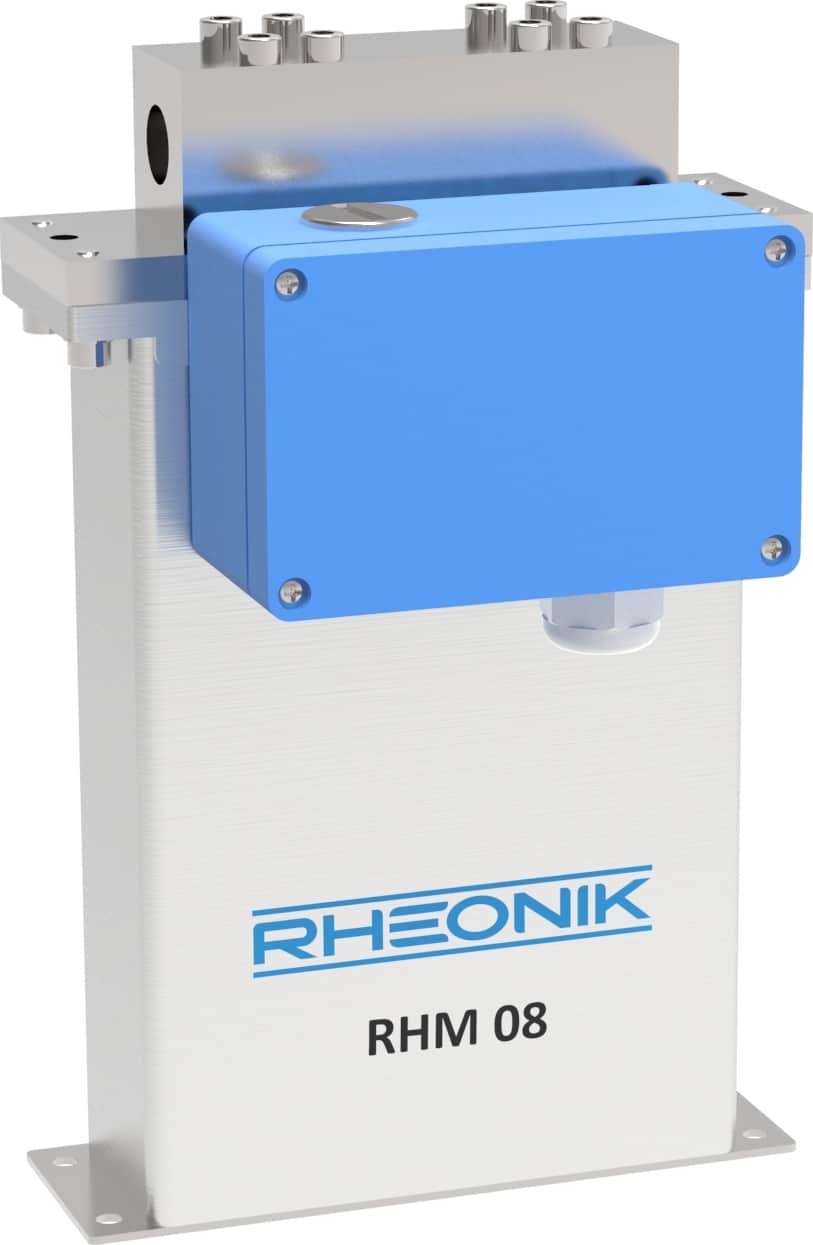

RHM 08
Small Scale Meters
RHM 08
The RHM08 is perfect for small scale production with continuous low flow and small batch dispensing requirements. With a variety of construction styles, the RHM08 is ideal for countless flow applications.
| Typical Application Range | 0.3 - 50 kg/min | ||||
| Max Pressure | 1,254 bar / 18,057 psi | ||||
| Temperature | -196 - +400°C | ||||
| Accuracy | 0.1% of rate | ||||
| Materials |
|
||||
| Process Connections Size | 1/2" - 2" |
RHM 12
Process Scale Meters
RHM 12
The RHM12 is a workhorse 1″ sensor used in every imaginable industry. Suitable for both continuous process and batching/filling applications, the RHM12 is a truly versatile tool for plant operations everywhere.
| Typical Application Range | 0.75 - 100 kg/min | |||||
| Max Pressure | 1,097 bar / 15,910 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 3/4" - 2" |

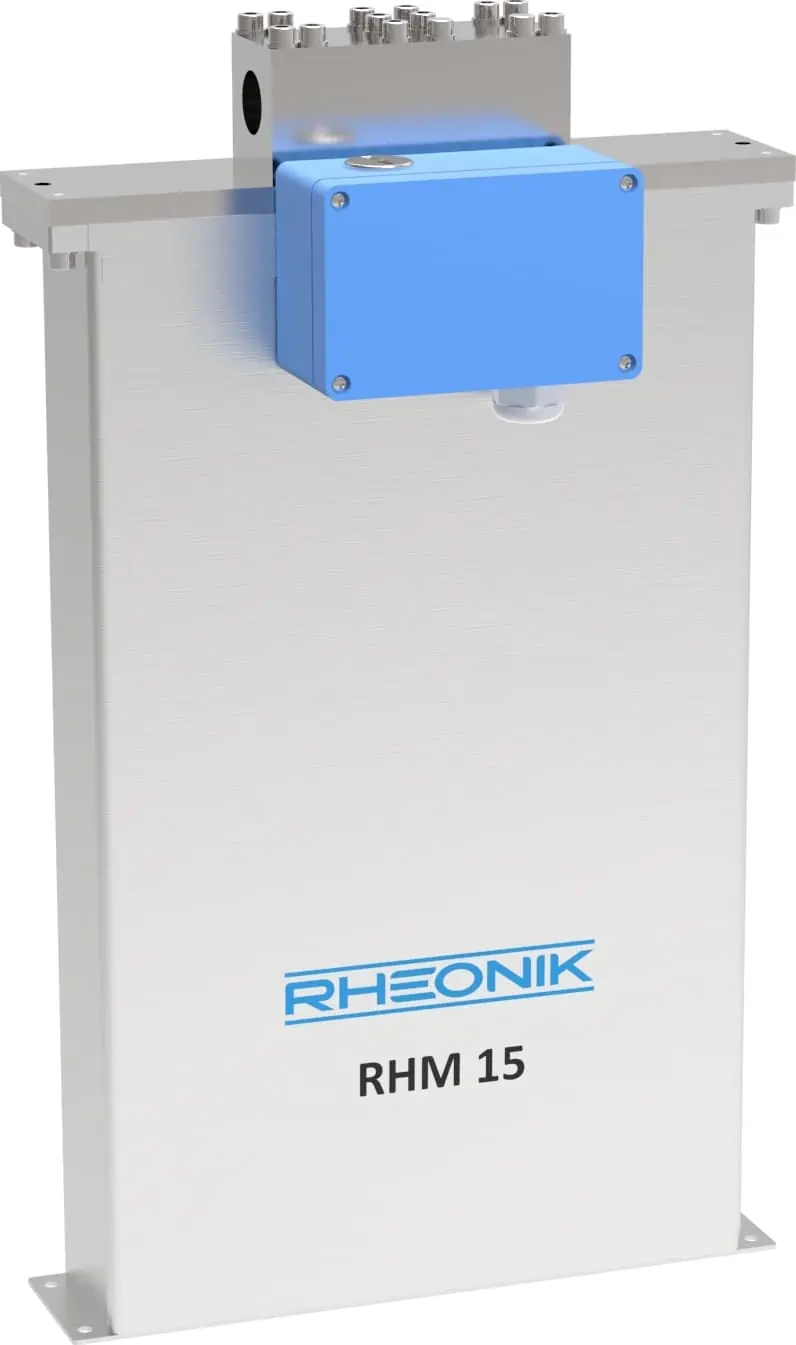

RHM 15
Process Scale Meters
RHM 15
The RHM15 is an all-purpose meter suitable for liquid processing plants. A wide application flow range capability makes it suitable for installation across numerous different lines - a real benefit to owners and operators.
| Typical Application Range | 1 - 200 kg/min | |||||
| Max Pressure | 882 bar / 12,792 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 3/4" - 2" |

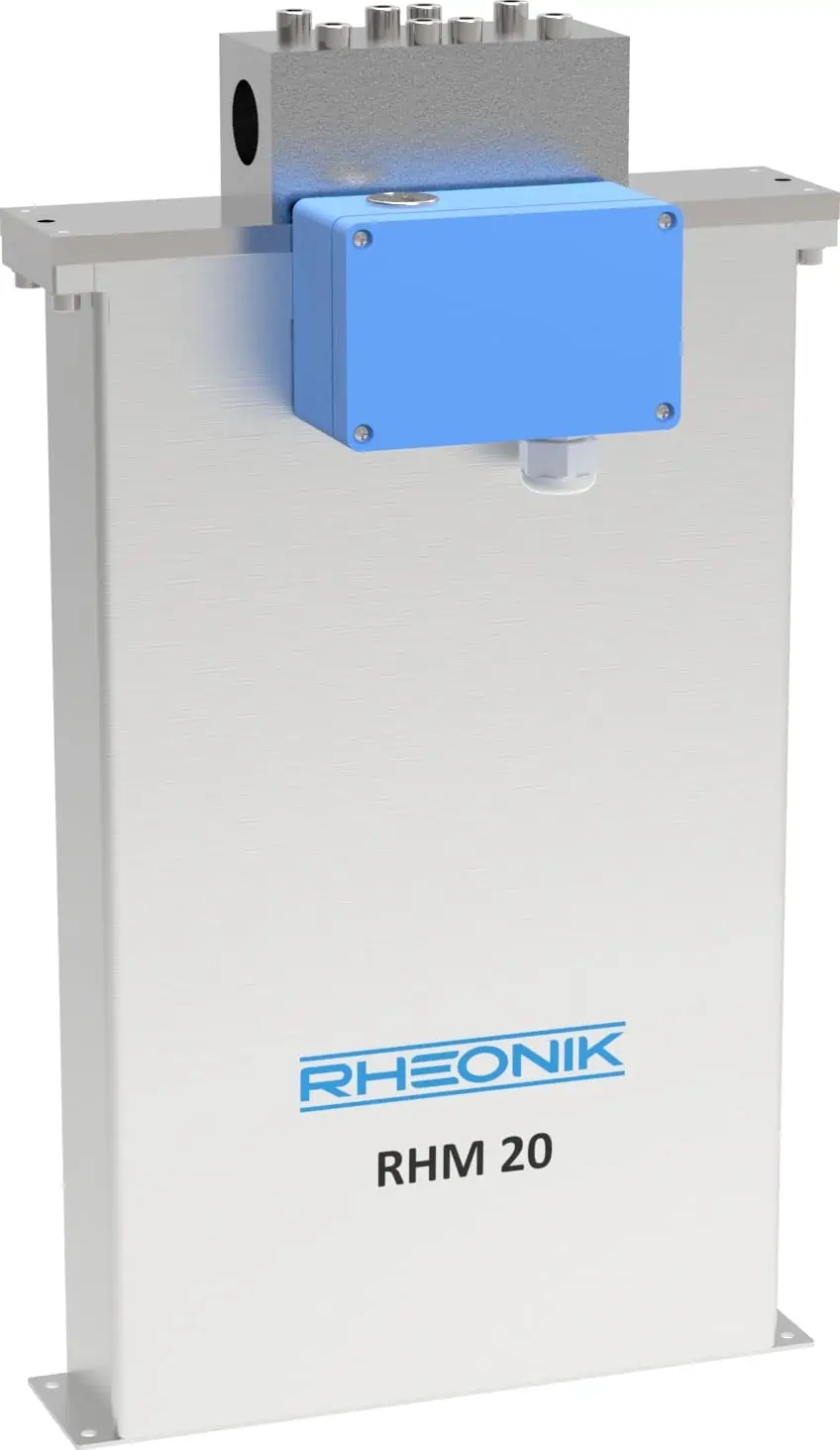

RHM 20
Process Scale Meters
RHM 20
The RHM20 is a 2″ meter designed for general purpose flow measurement without the need for maintenance. Robust and accurate, the RHM20 outperforms other flow technologies at an attractively low cost of ownership.
| Typical Application Range | 2.25 - 300 kg/min | |||||
| Max Pressure | 799 bar / 11,588 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1" - 3" |

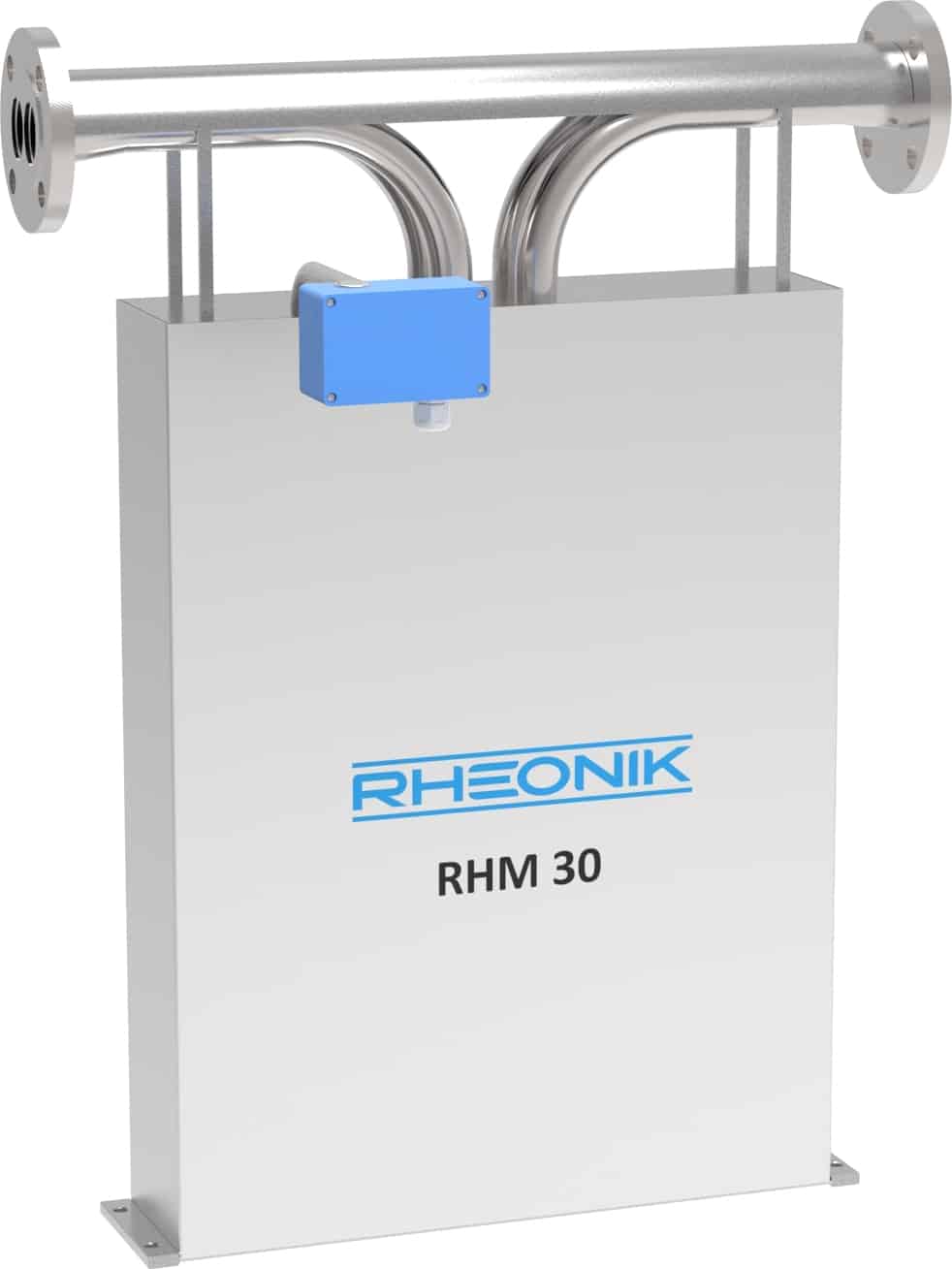

RHM 30
Process Scale Meters
RHM 30
The RHM30 is available with a wide choice of material options to suit benign and aggressive applications. Heavy duty variants meet high pressure and high temperature needs while providing the highest accuracy performance.
| Typical Application Range | 5 - 750 kg/min | |||||
| Max Pressure | 798 bar / 11,574 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 1.5" - 4" |

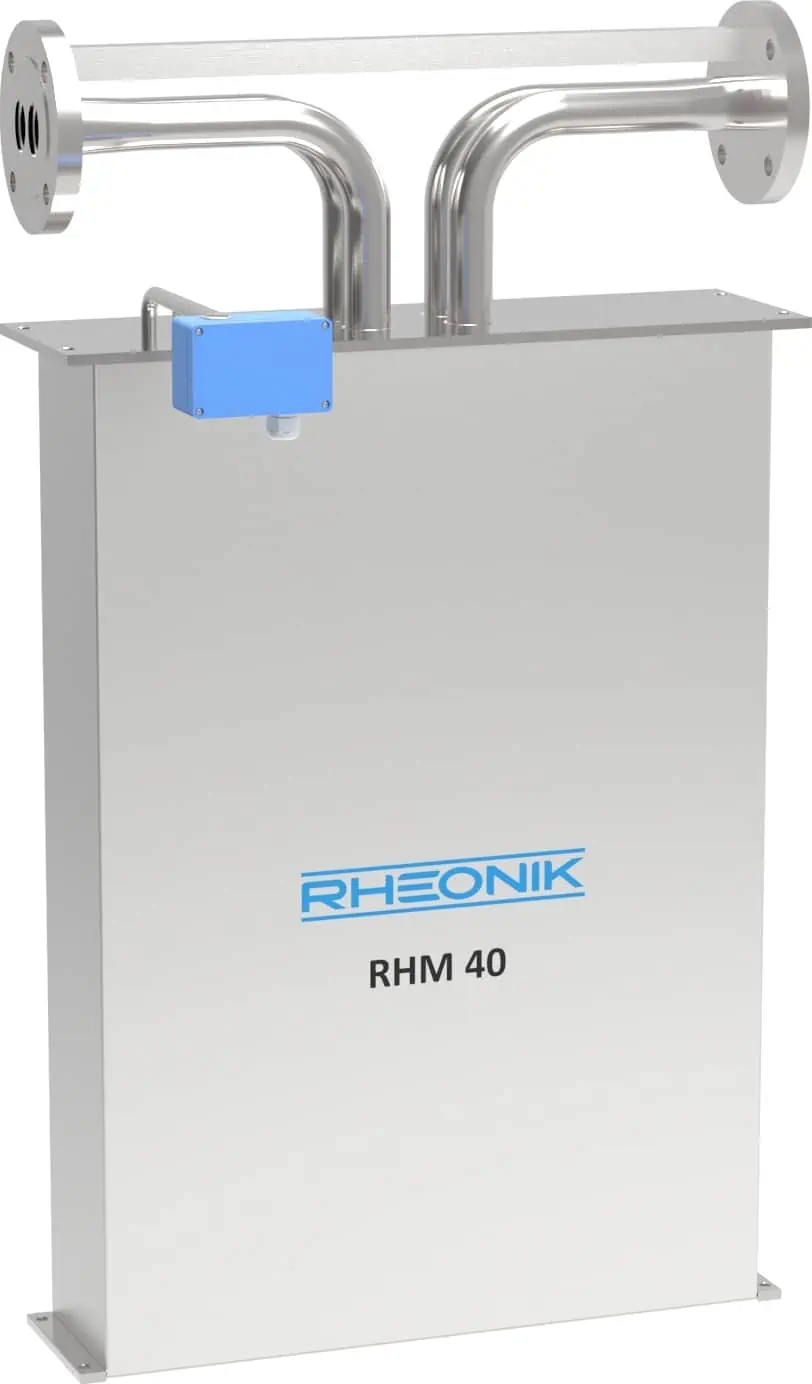

RHM 40
Process Scale Meters
RHM 40
The RHM40 Coriolis sensor offers a low pressure drop and exceptional turndown capability. Designed for general process applications, the RHM40 is available with a choice of materials and the highest pressure ratings.
| Typical Application Range | 12.5 - 1,500 kg/min | |||||
| Max Pressure | 550 bar / 7,977 psi | |||||
| Temperature | -196 - +400°C | |||||
| Accuracy | 0.1% of rate | |||||
| Materials |
|
|||||
| Process Connections Size | 2" - 4" |

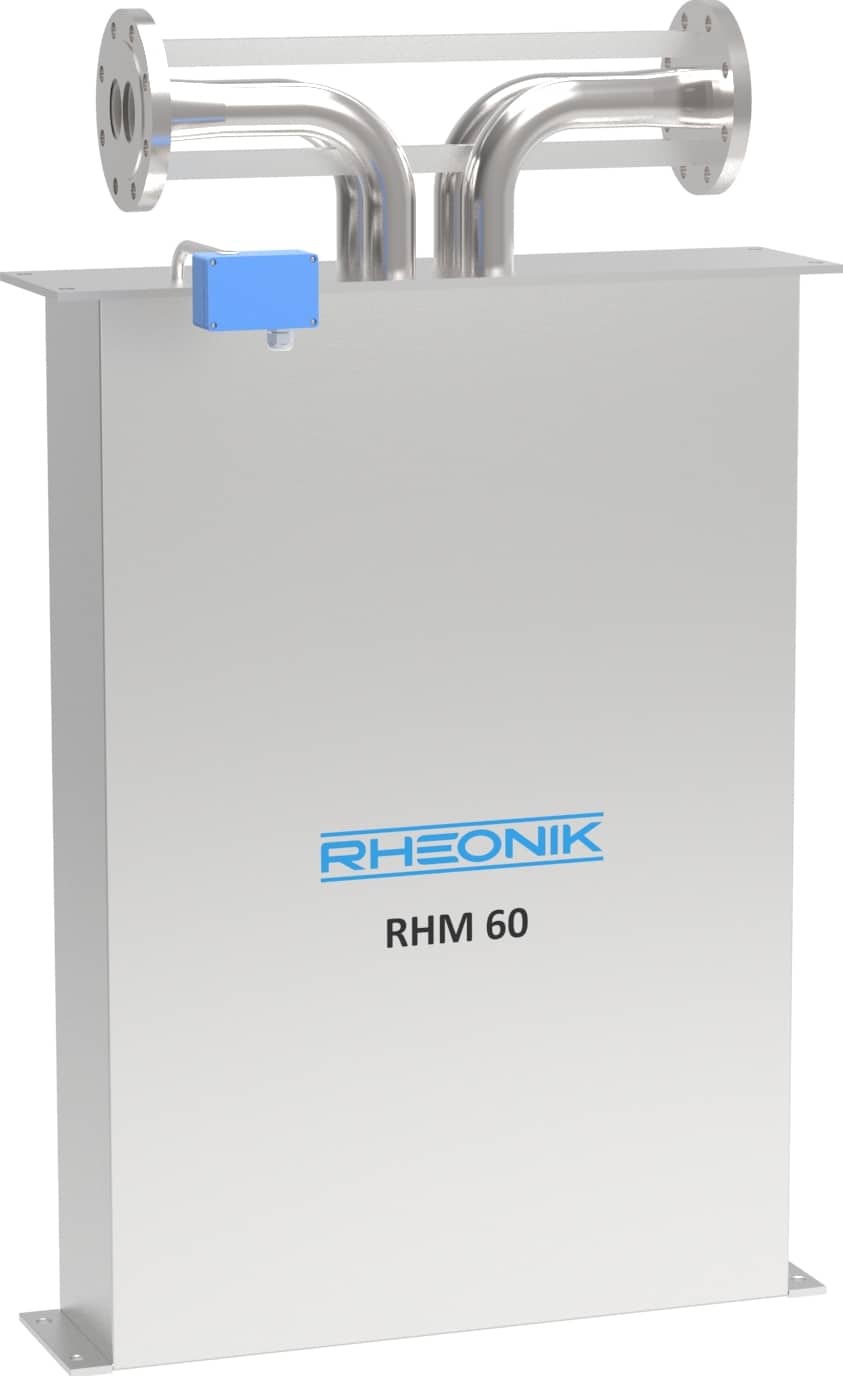

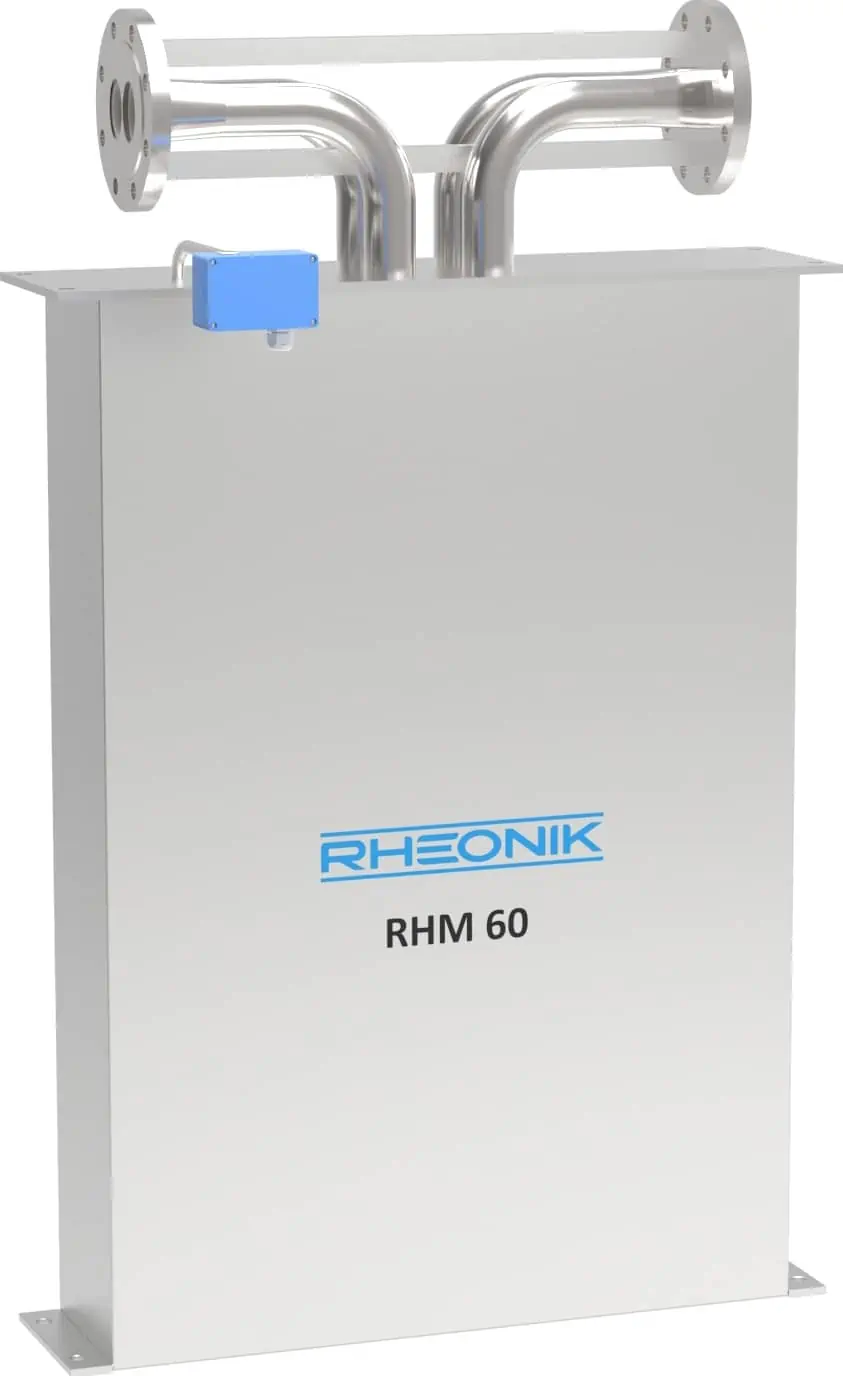

RHM 60
Full Scale Meters
RHM 60
The RHM60 is a robust sensor designed for 4″ line sizes. The availability of a variety of wetted materials and wide pressure/temperature ratings allows for use in applications throughout all industries.
| Typical Application Range | 45 - 3,000 kg/min | ||||
| Max Pressure | 430 bar / 6,236 psi | ||||
| Temperature | -196 - +350°C | ||||
| Accuracy | 0.1% of rate | ||||
| Materials |
|
||||
| Process Connections Size | 4" - 6" |

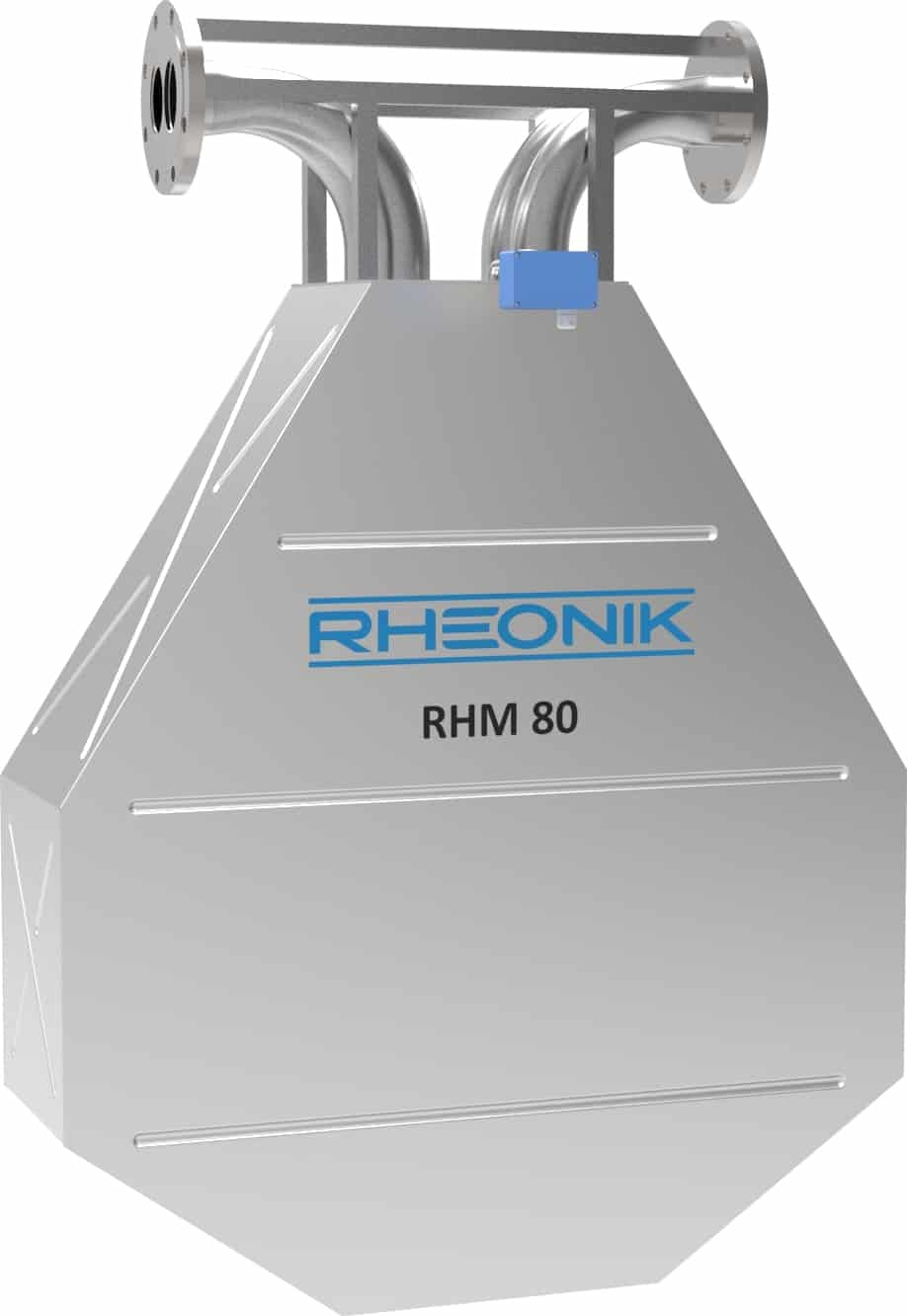

RHM 80
Full Scale Meters
RHM 80
The RHM80 excels in tough applications where high temperatures, pressures and corrosive fluids are present. Its heavy duty construction withstands extreme applications without losing Coriolis meter performance.
| Typical Application Range | 45 - 3,000 kg/min | ||||
| Max Pressure | 430 bar / 6,236 psi | ||||
| Temperature | -196 - +400°C | ||||
| Accuracy | 0.1% of rate | ||||
| Materials |
|
||||
| Process Connections Size | 4" - 6" |

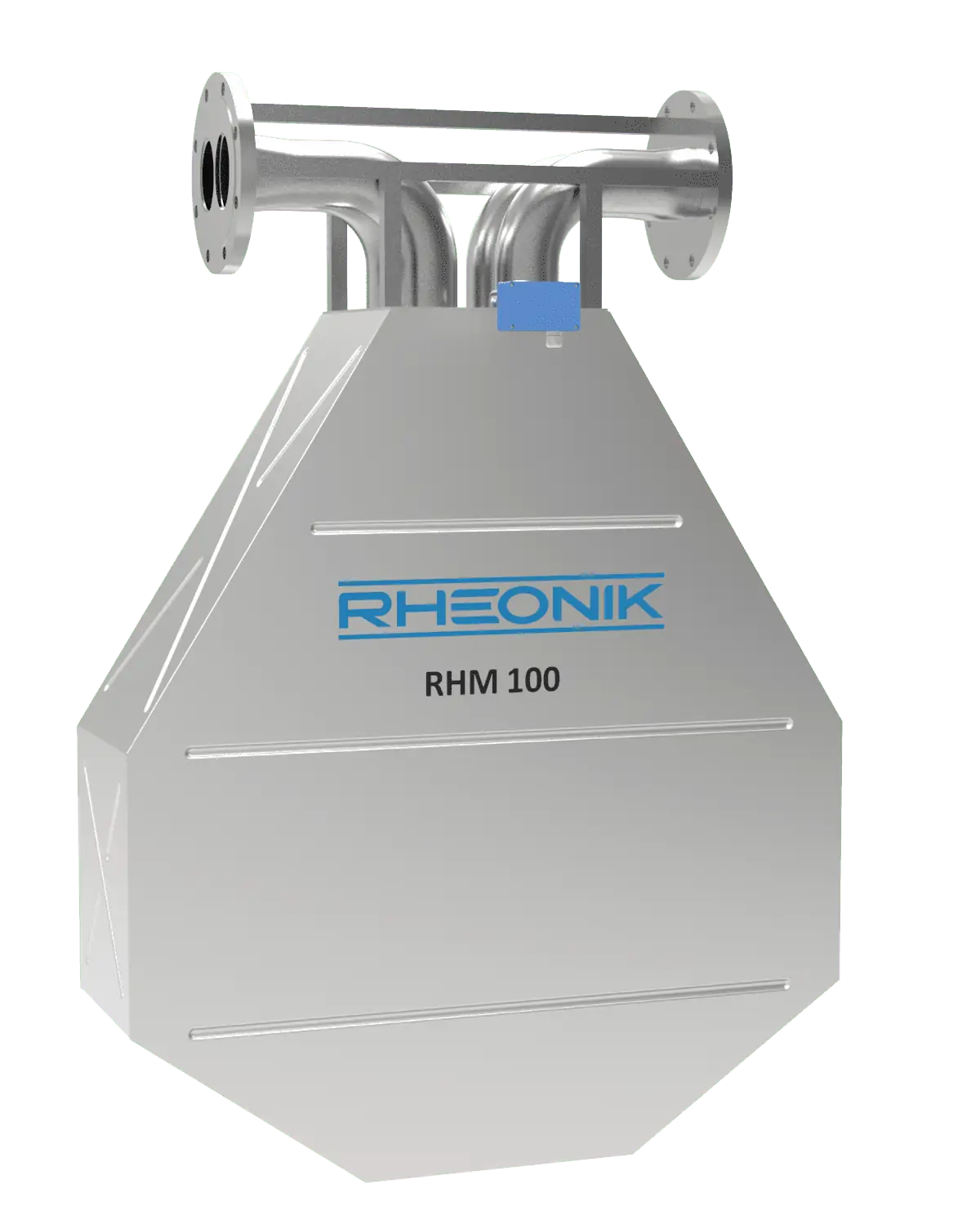

RHM 100
Full Scale Meters
RHM 100
The RHM100 is a high throughput Coriolis mass flow meter designed for plant balance and loading/unloading applications with trucks, railcars, barges, tankers and pipelines.
| Typical Application Range | 200 - 12,000 kg/min | ||||
| Max Pressure | 237 bar / 3,437 psi | ||||
| Temperature | -196 - +210°C | ||||
| Accuracy | 0.1% of rate | ||||
| Materials |
|
||||
| Process Connections Size | 8" - 10" |
RHM 160
Full Scale Meters
RHM 160
The RHM160 is the ultimate cargo and pipeline meter. With a combination of high accuracy and low pressure drop, the RHM160 is the perfect solution for rapidly transferring large fluid quantities with confidence.
| Typical Application Range | 600 - 30,000 kg/min | |||
| Max Pressure | 60 bar / 870 psi | |||
| Temperature | -196 - +120°C | |||
| Accuracy | 0.1% of rate | |||
| Materials |
|
|||
| Process Connections Size | 10" - 12" |
