The Remote Optical Watcher (ROW) is an advanced non-contact sensor engineered for precise oil spill detection and comprehensive environmental monitoring. Designed for continuous 24/7/365 water monitoring, it can be deployed anywhere, from local to remote sites. Its non-contact design eliminates issues with marine biofouling or coating of its optical window, ensuring exceptional reliability with minimal maintenance – a crucial benefit for remote deployments.
Using UV fluorescence, the oil spill ROW is mounted above pits, channels and any body of water to monitor for the presence of hydrocarbons on its surface. An adjustable threshold is set and any level of detection above the threshold will trigger an output. An oil spill ROW can be installed up to 10m/33ft above the water surface. Algal bloom detectors are also mounted above water and target the presence of chlorophyll-a, a pigment common to all algae. Similar to the oil spill detector, an output will be triggered when algae levels increase above the set threshold.

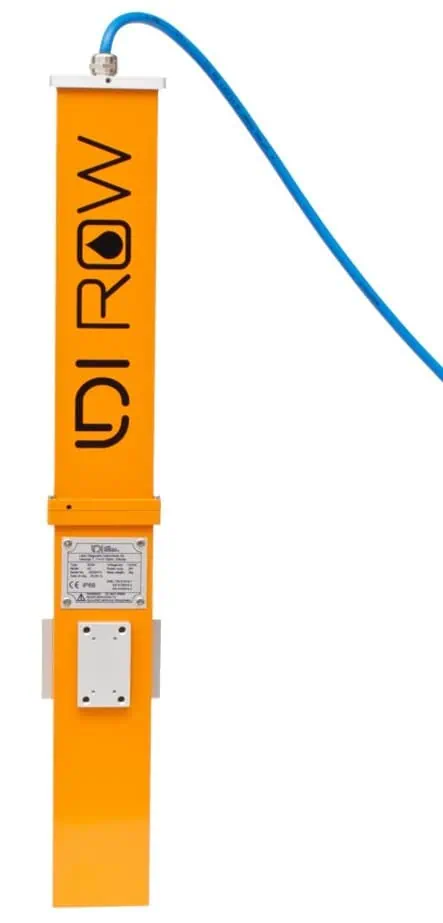

ROW
ROW
ROW
| Light Source | Pulsed UV LED (5 year life) |
| Range | Up to 10m/33ft from surface |
| Operating mode | UV fluorescence |
| Operating Temperature | -30°C to +60°C / -22°F to 140°F |
| Sensitivity | >1µm / 39µinch oil film |
| Outputs | Relay Contact 4 – 20mA |
| Digital Output | RS-485 (Modbus) |
| Optional Telemetry Interfaces | RS-232, Ethernet/LAN, audio alarm, wireless radio link, Wi-Fi, GSM |
| Enclosure Materials | Anodized Aluminum, powder coating, purged with Argon |
| Enclosure Protection | IP68, hermetically sealed |
| Dimensions | 590 x 83 x 80 mm / 23.2 x 3.3 x 3.1 in |
| Software | ROW Configurator software for setup & adjustment ROW Manager software for network visualization |
| Power Consumption | < 2W (DC) |
| Power Supply | 12 – 24 VDC (10V - 30V) Optional: 110/220Vac, 50/60Hz adapter, solar/battery set |
| Certification | Third party tested for compliance with EPA/530/UST-90/009 |

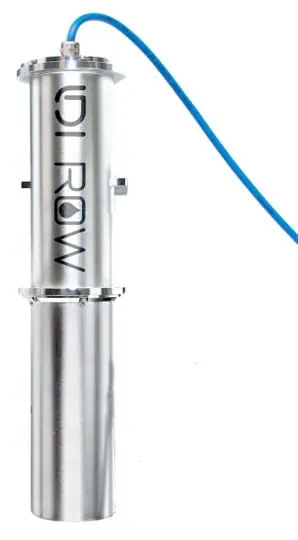

ROW-SS
ROW-SS
| Light Source | Pulsed UV LED (5 year life) |
| Range | Medium/Heavy Oils - Up to 10m/33ft from surface Light Oils - 4 – 5m / 13 – 16.5ft from surface BTEX - 1 – 1.5m / 3.3 - 5ft from surface |
| Operating mode | UV fluorescence |
| Operating Temperature | -30°C to +60°C / -22°F to 140°F |
| Sensitivity | >1µm / 39µinch oil film |
| Outputs | Relay Contact 4 – 20mA |
| Digital Output | RS-485 (Modbus) |
| Optional Telemetry Interfaces | RS-232, Ethernet/LAN, audio alarm, wireless radio link, Wi-Fi, GSM |
| Enclosure Materials | Electropolished 316L SS, purged with Argon |
| Enclosure Protection | IP68, hermetically sealed |
| Dimensions | 611 x 139 x 139 mm / 24 x 5.5 x 5.5 in |
| Software | ROW Configurator software for setup & adjustment ROW Manager software for network visualization |
| Power Consumption | < 2W (DC) |
| Power Supply | 12 – 24 VDC (10V - 30V) Optional: 110/220Vac, 50/60Hz adapter, solar/battery set |
| Certification | Third party tested for compliance with EPA/530/UST-90/009 |

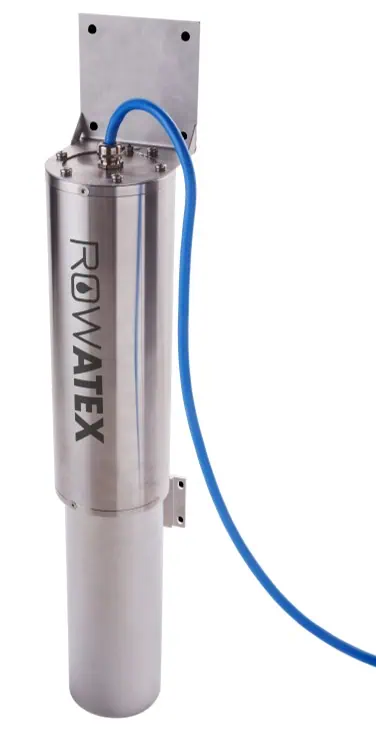

ROW-EX
ROW-EX
| Light Source | Pulsed UV LED (5 year life) |
| Range | Medium/Heavy Oils - Up to 8m/24ft from surface Light Oils - 4m / 13ft from surface BTEX – 0.7 - 1m / 2.3 - 3.3ft from surface |
| Operating mode | UV fluorescence |
| Operating Temperature | -30°C to +60°C / -22°F to 140°F |
| Sensitivity | >1µm / 39µinch oil film |
| Outputs | Relay Contact 4 – 20mA |
| Digital Output | RS-485 (Modbus) |
| Optional Telemetry Interfaces | RS-232, Ethernet/LAN, audio alarm, wireless radio link, Wi-Fi, GSM |
| Enclosure Materials | Electropolished 316L SS, purged with Argon |
| Enclosure Protection | IP68, hermetically sealed |
| Hazardous Area Rating | ATEX/IECEx Zone 1 II 2 G Ex d IIC T6 Gb (testing to NA certification possible) |
| Dimensions | 677.5 x 132 x 132mm / 26.7 x 5.2 x 5.2in |
| Software | ROW Configurator software for setup & adjustment ROW Manager software for network visualization |
| Power Consumption | < 2W (DC) |
| Power Supply | Medium/Heavy Oils: 12 – 24 VDC (10V - 30V) Light Oils/BTEX: 12Vdc only Optional: 110/220Vac, 50/60Hz adapter, 24Vdc to 12Vdc adapter, solar/battery set |
| Certification | Third party tested for compliance with EPA/530/UST-90/009 |

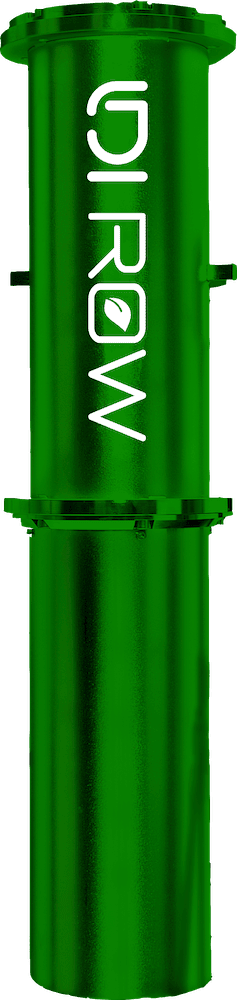

Algae ROW
ALGAE ROW
ALGAE ROW
| Light Source | Pulsed UV LED (5 year life) |
| Range | 0.3 – 2m/1 – 6.5ft above water surface |
| Operating mode | UV fluorescence (of chlorophyll-a) |
| Operating Temperature | -25°C to +60°C / -13°F to 140°F |
| Sensitivity | > 2 µg/L chlorophyll-a in vivo |
| Outputs | Relay Contact 4 – 20mA |
| Digital Output | RS-485 (Modbus) |
| Optional Telemetry Interfaces | RS-232, Ethernet/LAN, audio alarm, wireless radio link, Wi-Fi, GSM |
| Enclosure Materials | Anodized Aluminum, powder coating, purged with Argon |
| Enclosure Protection | IP68, hermetically sealed |
| Dimensions | 609 x 133.5 x 133.5mm / 23.9 x 5.2 x 5.2in |
| Software | ROW Configurator software for setup & adjustment ROW Manager software for network visualization |
| Power Consumption | < 2W (DC) |
| Power Supply | 12 – 24 VDC (10V - 30V) Optional: 110/220Vac, 50/60Hz adapter, solar/battery set |
