The importance of detecting oil in water goes beyond just regulatory compliance or maintaining smooth operations. Oil-contaminated water poses a significant threat to both ecosystems and industry. Even trace amounts of oil can cause serious problems. In factories and plants, oil seeping into heating or cooling systems can gum up machinery, tank efficiency, and lead to expensive shutdowns. The potential for ruined products adds another layer of risk.
The environmental toll is equally severe. Many hydrocarbons in oil are toxic or carcinogenic. Others accumulate in the food chain, causing long-term damage that may not be immediately apparent. Quick and accurate oil detection serves as a critical line of defense against both industrial mishaps and ecological damage.
The Impact of Oil in Water
Oil contamination in drinking water sources threatens human well-being. In aquatic environments, oil disrupts ecosystems by forming a barrier on the water’s surface, inhibiting oxygen exchange and harming marine life. Even at low concentrations, hydrocarbons in oil can be toxic to fish, birds, and other wildlife, leading to long-term ecological damage.
Industries using large volumes of water, such as power generation, petrochemical, and manufacturing, must monitor for oil contamination to maintain efficiency. In cooling systems, oil can reduce heat transfer by forming an insulating layer on surfaces, causing overheating, increased energy use, and potential equipment failure. Oil also promotes fouling and blockages in pipes and cooling towers, compromising system performance and lifespan.
Given these concerns, the detection of trace oil in water safeguards the environment, protects public health, and enhances industrial efficiency. In fact, strict environmental regulations often require industries to discharge oil-free wastewater to prevent ecological damage and avoid substantial fines.
Methods for Detecting Trace Oil in Water
The low concentrations and the complexity of oil and water mixtures make trace oil detection a challenging task. Oil presents in two main forms: aliphatic and aromatic.
- Aliphatic Oils are composed of hydrocarbons with straight or branched chains. The carbon atoms in aliphatic hydrocarbons are linked together in open chains, which can be either saturated (alkanes) or unsaturated (alkenes and alkynes). Example compounds include methane, ethane, hexane, and octane.
- Aromatic Oils contain hydrocarbons with at least one aromatic ring, which is a stable, ring-shaped structure with alternating double bonds, known as a benzene ring. Common aromatic compounds include benzene, toluene, xylene, and naphthalene.
Oil and water are famously immiscible, meaning they do not mix or form a homogeneous solution. When mixed with water, oil disperse as tiny droplets, forming an emulsion. However, a very small amount of oil will break down to a molecular level, becoming essentially fully dissolved in the water. The amount of dissolved oil in the water depends upon the type of oil involved.
The general techniques used to identify oil in water
1. Fluorescence
Fluorescence detection is one of the most sensitive and widely used methods for detecting trace oil in water. Aromatic hydrocarbons naturally fluoresce when exposed to ultraviolet (UV) light. When a water sample containing aromatic oil is exposed to UV light, the oil emits light at a longer wavelength that can be detected optically.
Advantages:
- The high sensitivity allows detection of aromatic oil at very low concentrations, often down to parts per billion (ppb).
- Fluorescence sensors can be installed in-line in water systems for continuous, real-time detection, providing immediate alerts in case of contamination.
- Low response to other materials (such as particulate), making it very selective to oil only.
Challenges:
- Different oil types will fluoresce differently. For instance, Toluene emits a blue to blue-green light, while Polycyclic Aromatic Hydrocarbons (PAHs) emit a more blue or violet light. The intensity of the emitted light can also vary. Because of this, fluorescence detectors require careful calibration if differentiation between different types of oils is required.
- Other organic compounds (such as Chlorophyll) also fluoresce and may influence detection in an environmental measurement setting.
- Does not detect aliphatic oils.
2. Turbidity Measurement
Turbidity measurement is a simpler, less specific method that detects oil in water by measuring the cloudiness or haziness caused by suspended oil droplets. It works by passing light through the water and measuring the amount of light that is scattered by particles.
Advantages:
- Typically less expensive than fluorescence detection.
- Can be used for real time continuous monitoring of water systems.
Challenges:
- Less sensitive to small amounts of oil and may not detect trace concentrations.
- Does not detect dissolved oil content
- Cannot distinguish between oil and other particles that might cause turbidity, leading to potential false positives.
3. UV-VIS Spectroscopy
UV-VIS spectroscopy is another optical method that measures the absorption of ultraviolet or visible light by oil in water. The amount of light absorbed at specific wavelengths correlates with the concentration of oil in the sample.
Advantages:
- Offline, it provides rapid results with minimal sample preparation.
- Deployed online as a photometer (single/dual wavelength absorbance), it provides continuous, real-time measurement.
Challenges:
- Less sensitive than fluorescence
- UV-VIS can be affected by other substances, both organic and inorganic, in the water that absorb light in the same range.
- Particulate matter can make the baseline noisy, complicating the detection of low levels of oil
- High maintenance requirement
More complex measurement techniques, such as IR Spectroscopy and Gas Chromatography, offer additional options for detecting oil in water. These sophisticated methods require sample systems and preparation processes to remove particulates and other interfering substances. While they provide highly specific results, both the capital and operational costs are significantly higher.
As a result, such advanced detection methods are typically reserved for scenarios where trace oil detection is critical to process integrity. In other words, their deployment is often limited to industries or applications where the utmost precision in oil detection justifies the increased complexity and expense.
The Future of Oil Detection in Water
Environmental concerns and regulatory pressures have intensified in recent years, driving an increased need for accurate detection of trace oil in water. As multiple oil types can potentially contaminate water sources, combining various measurement technologies enhances the performance of detection systems.

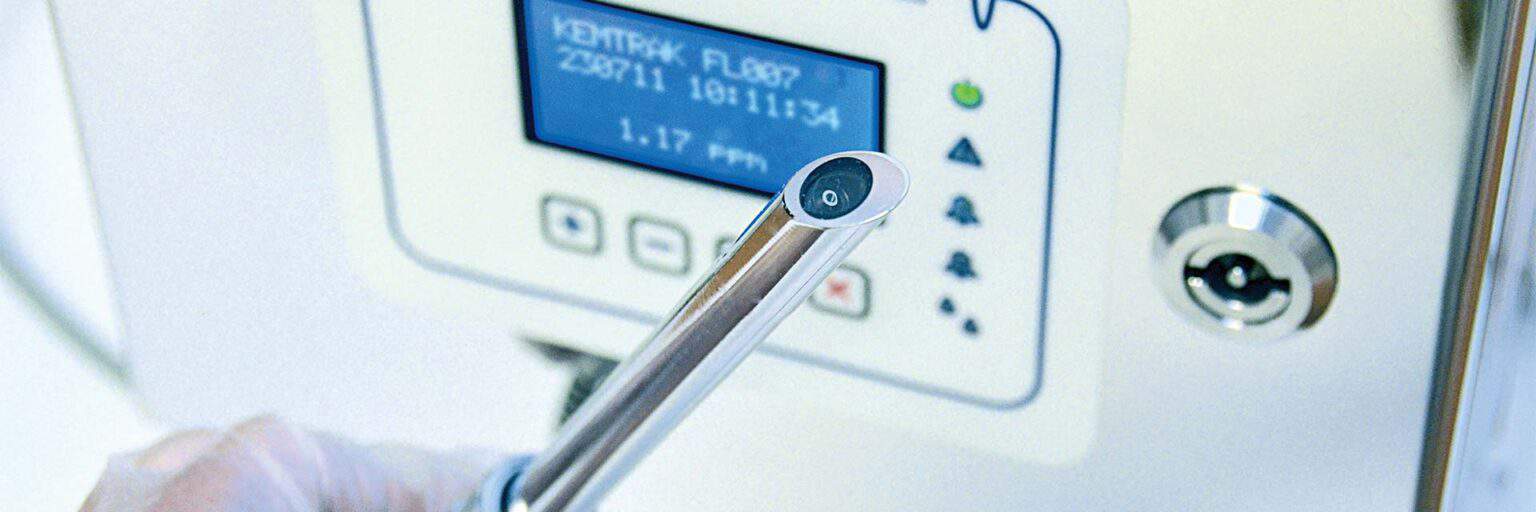

The Kemtrak FL007 oil-in-water analyzer addresses this challenge by integrating multi-sensor capabilities. By combining fluorescence and turbidity measurements, this innovative instrument effectively detects both aromatic and aliphatic oils within a single process stream. Designed for applications such as leak detection in heating/cooling water systems, steam condensate monitoring, and membrane protection, the FL007 can be strategically deployed in pipes or towers. Its proactive approach allows for early detection and mitigation of oil contamination, preventing minor issues from escalating into major environmental or operational problems.
The Main Takeaways
Trace oil in water can disrupt ecosystems, contaminate drinking supplies, and cause costly industrial equipment failures. Current detection methods range from simple fluorescence sensors to complex spectroscopic systems, each balancing sensitivity, specificity, and cost. Integrating multiple techniques allows for lower detection thresholds and identification of a wider range of oil contaminants.
Recent advances in sensor miniaturization and machine learning algorithms are improving both the accuracy and speed of oil detection. These developments enable rapid identification of contamination events, allowing for swift containment measures that minimize environmental damage and reduce production downtime. As water quality regulations tighten globally, the demand for more sophisticated yet user-friendly oil detection solutions continues to drive innovation in this field.
Contact South Fork Instruments
For expert guidance on selecting the right oil-in-water detection solution for your needs, contact us at South Fork Instruments by filling out this form or calling us at (925)461-5059. As authorized distributors of Kemtrak and other leading brands, our team can help you implement cutting-edge technology to protect your operations and the environment.
