New Fiber Optic Based Single-Use UV Absorbance System

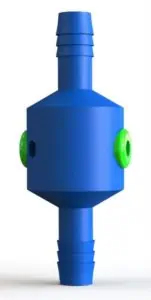

SFI are pleased to announce the release of a range of hygienic single use flow cells for use with the Kemtrak DCP007 UV Absorbance Analyzer. The single use cells are available in a range of different line sizes and with a variety of optical path lengths to suit all applications from small scale discovery to full scale production. Manufactured from high quality medical grade polysulfone, cells are color coded for optical path length and sterilizable either through autoclaving or irradiation. A zero dead volume in the cells ensures sharp peak detection for fractionation control and filtration applications.Kemtrak DCP007 UV Absorbance Analyzer

Four sizes of cell are available from ¼” to 1” and all have ready-to-attach hose barb connections. A robust, space saving cell holder with quick insertion/release mechanism precisely positions the cell in the optical light path for reliable measurement performance   Cells can be delivered with optical path lengths from 10mm to 0.5mm, giving overall measurement range capability of 4.5 to 90 OD when used with a DCP007 UV analyzer.

New-FiberKemtrak DCP007 UV Absorbance Analyzer Cell-Optic-Based-Single-Use-UV-Absorbance-System-2The Kemtrak DCP007 is an industrial in-line UV fiber optic photometer designed to accurately measure UV absorbance of fluids in filtration and separation systems using long life solid state LED light sources and precision fiber optics to provide drift and noise-free deep UV measurement at very high precision.

The Single Use UV Absorbance system will be on show at Interphex on South Fork Instruments booth #1338.

South Fork Instruments, Inc. is the master distributor for Kemtrak AB in the USA.


South Fork Instruments, Inc.

Auburn, CA
925 461 5059

Media contact:
John Daly

3845 Buffalo Road
Auburn, CA 95602
Tel: (+1) 925-461-5059
